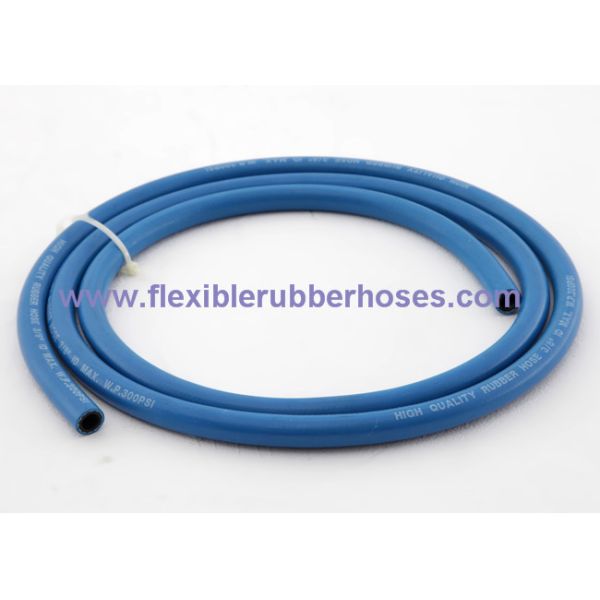

Fiber Braided Flexible Rubber Hose , Rubber Fuel Hose For Diesel , Oil Fuel , 2 Mpa
Specifications:
| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight |
| inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m |
| 3/16" | 5 | 11.5 | 20 | 300 | 60 | 900 | 100 | 0.028 | 0.15 |
| 1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 100 | 0.031 | 0.17 |
| 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 100 | 0.0353 | 0.216 |
| 3/8" | 10 | 17 | 20 | 300 | 60 | 900 | 100 | 0.0442 | 0.24 |
| 1/2" | 12.7 | 22 | 20 | 300 | 60 | 900 | 100 | 0.0756 | 0.428 |
| 5/8" | 16 | 25 | 20 | 300 | 60 | 900 | 50 | 0.0329 | 0.40 |
| 3/4" | 19 | 29 | 20 | 300 | 60 | 900 | 50 | 0.0572 | 0.60 |
| 1" | 25 | 36 | 20 | 300 | 60 | 900 | 50 | 0.099 | 0.84 |
| 1-1/4" | 32 | 43 | 10 | 150 | 30 | 450 | 50 | 0.170 | 1.20 |
| 1-1/2" | 38 | 50 | 10 | 150 | 30 | 450 | 50 | 0.190 | 1.39 |
| 2" | 51 | 65 | 10 | 150 | 30 | 450 | 50 | 0.410 | 1.80 |
Description:
1, Construction: Tube: NBR Synthetic Rubber
Reinforcement: High tensile polyester fiber braided.
Cover: NBR Synthetic Rubber
2, Appearance: Smooth finish, Black, Red, Blue etc
3, Applicable temperature: -30℃ to +100℃
4, Bend radius: 10 times of proper diameter dimension
5, Package: Common packed by OPP transparent film.
The pallet and woven bag packing are available, the color sticker can be offerd,
but shall be charged additionally.
6, Trademark: PASSION, OEM is available
7, Property: Good oil resistance and excellent flexibility. Without craze crack or fracture after 180°bending over or doubling
8, Certificates: CE, SGS
9, Main market: Middle East, Europe and America
10: Joint Connection: Customized as your request
Applications:
It is applied to circulating diesel, biodiesel, hydraulic oil, machinery oils and lubricating oil, or the oil products with the contents of aromatic substances not more than 30%; both the inner layer and protective layer of rubber hose of this grade are oil corrosion resistant and insulated.
Competitive Advantage:
Hangzhou Paishun Rubber And Plastic Co., Ltd, a leading rubber hose manufacturer in the east of China. 8 years manufacturing experience, 50 sets of braiders and 3 production lines.
Paishun has a strict quality inspection team, every shipment would be tested before shipment.
Free sample can be offered, we are happy to customize as your request.
Cooperative Brands:
WELDMAN, Max Weld, SAEFLEX. REDI-WELD
Paishun's Slogan:
PASSION FOR HOSE! PASSION FOR YOU!
